Custom & Specialty Products

Lehigh Fluid Power Custom Pneumatic & Hydraulic Cylinders

Custom Designs
We welcome the one-of-a-kind special. Custom designed cylinders for those special or difficult applications are an important part of our business. We have manufactured cylinders with special features: unique mounting requirements, tandem force cylinders, underwater operation, non-rotating rods, high-temperature applications, locking cylinders, composite materials, position sensing cylinders, alternate operating media cylinders, large bore cylinders, and custom engineered spring extend or spring retract cylinders, to name some.

Innovations

Among our innovations: The Miracalube ® self-lubricated air cylinder. Its lubricant is made of FDA approved materials and does not mist into the atmosphere. Over 50 million linear feet of piston travel have been reported in case histories!

Features

Among our features: Limit switches can be tie-rod mounted on our medium duty hydraulic cylinders and some high pressure cylinders. This is unique in the industry, allowing sensing to be set anywhere along the stroke without external mechanisms.

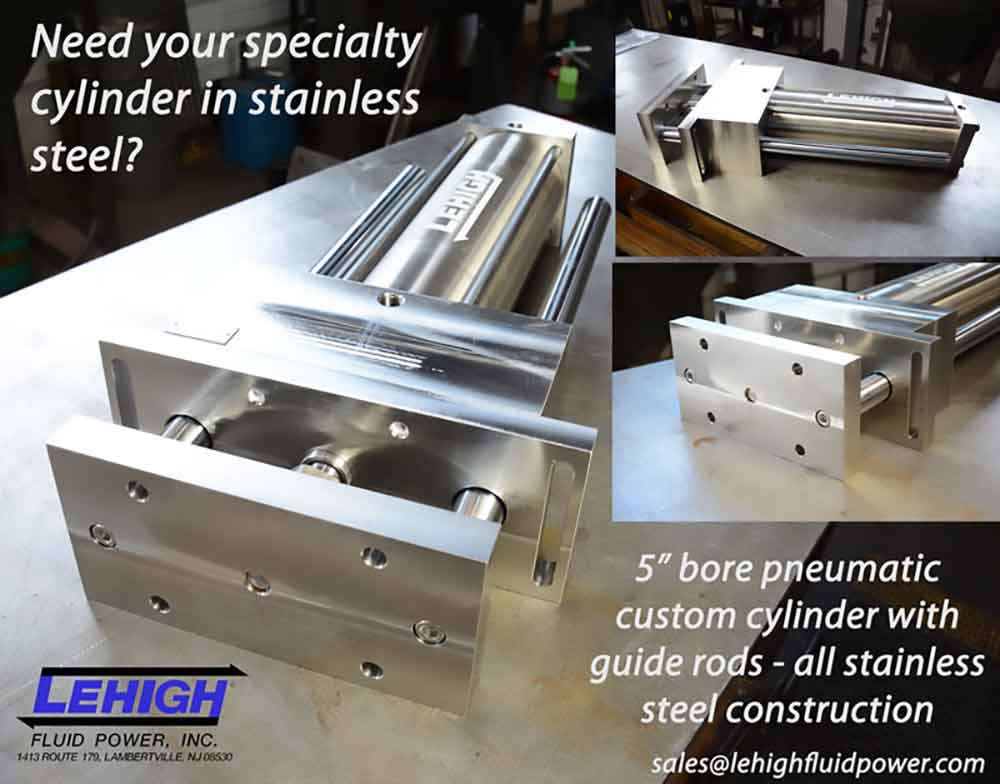

Stainless Steel

The all-stainless steel cylinder:
All of our product line – from the air and pneumatic cylinders, to boosters and intensifiers, to valve actuators, to spring extend and spring return cylinders – are offered in stainless steel construction inside-and-out. This means all the parts – tube, rod, bearing housing, tie-rods, tie-rod nuts, piston, open and closed heads – are 100% stainless steel.

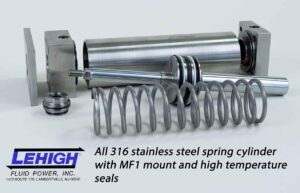

Spring Cylinders

Spring return or extend cylinders, often used in fail-safe applications, are routine for us.

Real Specials

But maybe you are looking for that particular design for your specific application – a real special. We have a long history of producing custom designs. This page shows just a few of the thousands of special actuators that Lehigh has manufactured. Let our engineering department work with yours to design the actuator you need for your specialty application.

1″x 6″ Electro-Hydraulic Transducer

14″ Bore Air Cylinder-Double Rod End with Manual Extend & Retract

6″ Bore Stainless Steel 2,500 PSI Hydraulic Cylinder with Linear Transducer & Cover

12″ Bore Pneumatic Servo-Positioner

2″ Bore Air Cylinder-Extended Double Rods Special Nose Mount
12″ Bore x 2″ Stroke-9″ Dia. Piston w/8″ Bore thru with (4) 1″Dia. Ejector Rods
3-1/4″ Bore • Brass & Stainless Steel Water Service Center with Valve
10″ Bore Air Cylinder with Air Valve, Manual Rod lock, and limit switches
20″ Bore • Bore Pneumatic Cylinder Water Service Center with Valve

10″ Bore Air Cylinder Stand-off Mount Indicator Rod with valve

Lehigh Fluid Power Specialty Cylinder Lines

Lehigh Fluid Power manufactures several specialty product lines that serve specific industries.

Need Help?

Don’t see what you need? Contact us today for additional assistance.
